Carli's most popular system, The pintop kit boasts Remote Reservoir King 2. 5 inch shocks.

Designed and tuned in house for the customer looking for substantial on and offroad performance improvement.

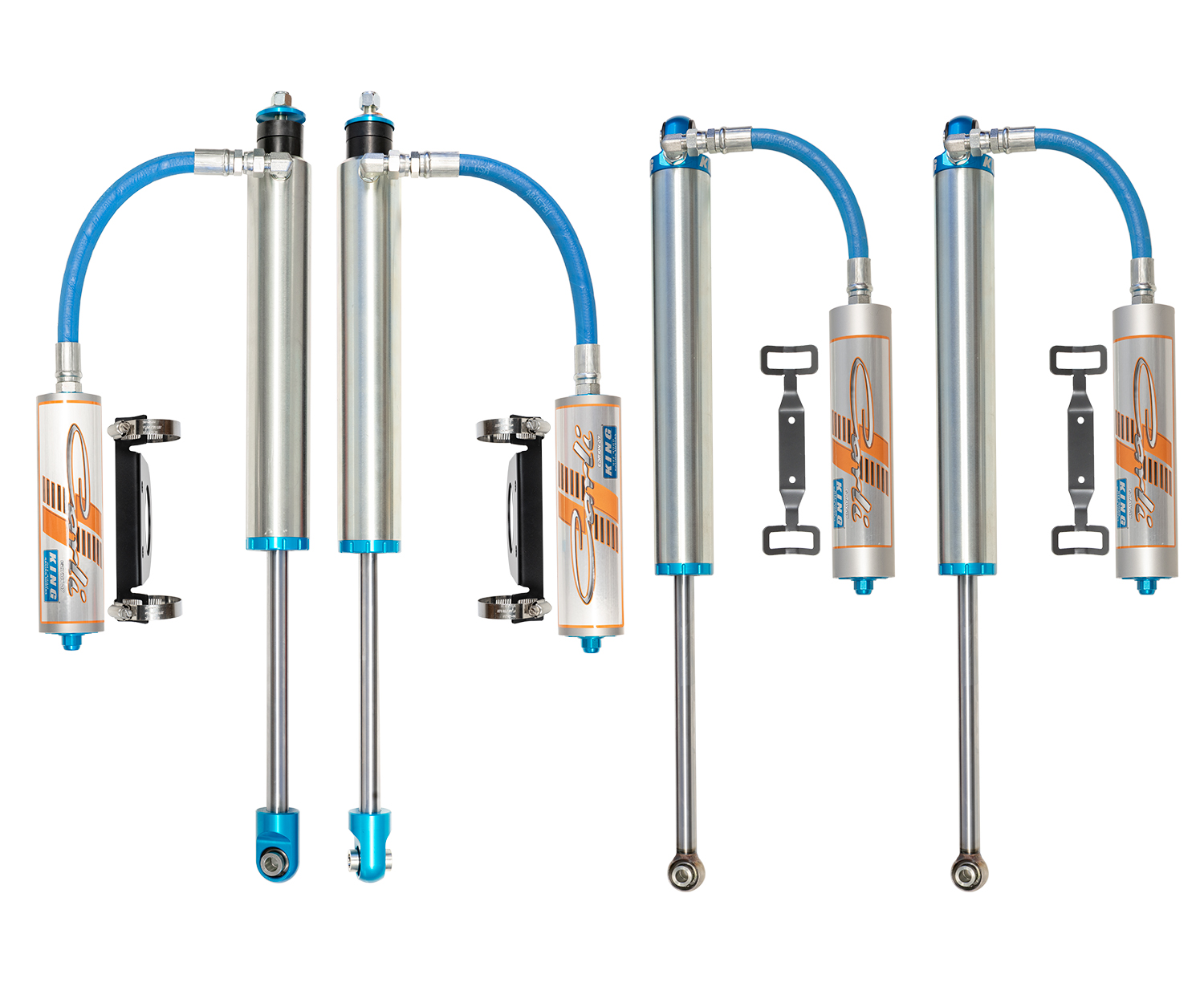

• The Carli Pintop is a Jack-of-all-trades system that delivers a sedate yet confident on-road ride with all the harsh edges rounded and smoothed while making light- to medium-duty off-road escapades completely controlled and uneventful. The system features Carli-specific, blueprinted, King 2.5 inch shocks on all four corners. With a 2.5 inch diameter shock body these Pintop shocks delver 55 percent more piston surface area than a 2.0 inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust 3-4-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

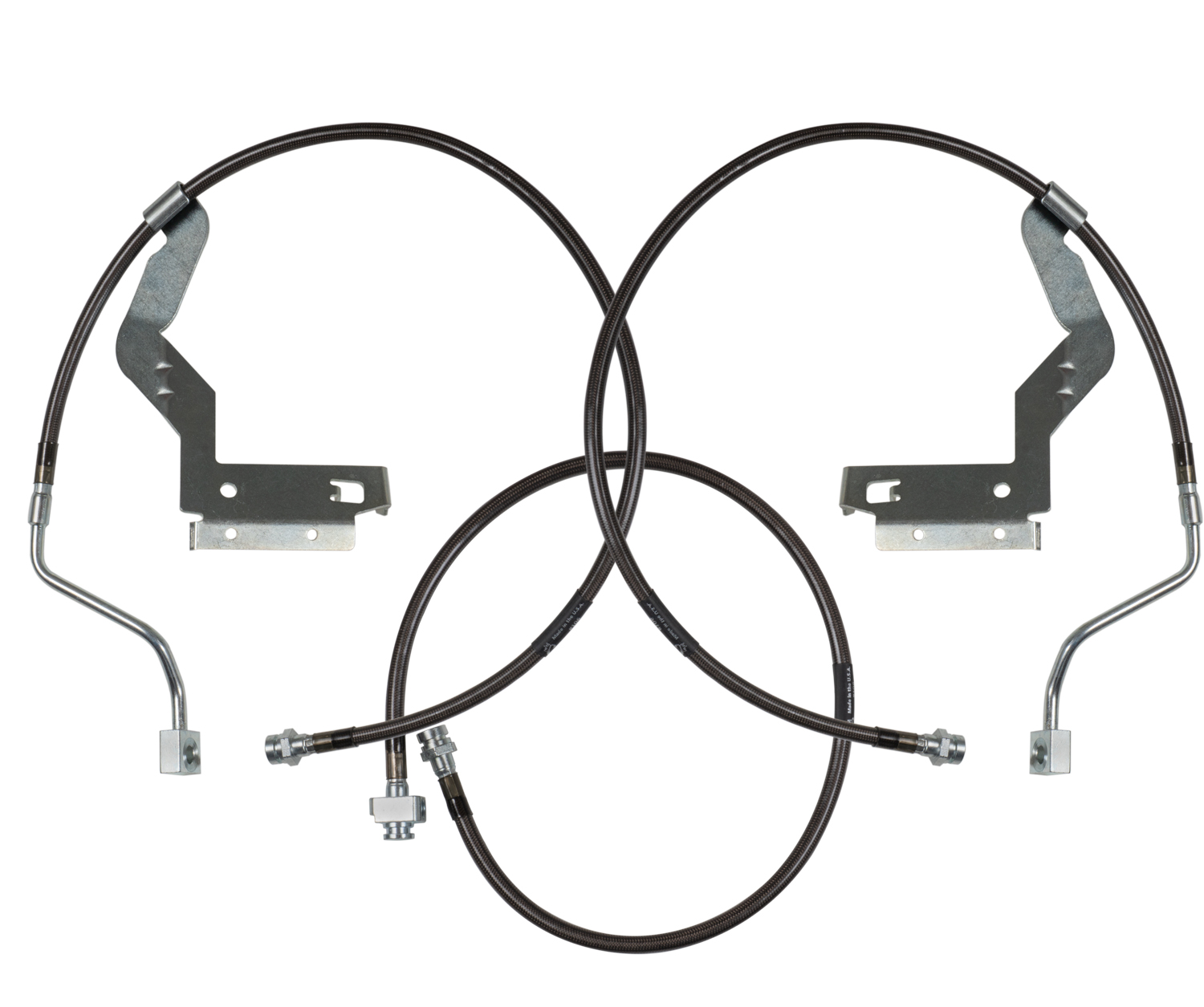

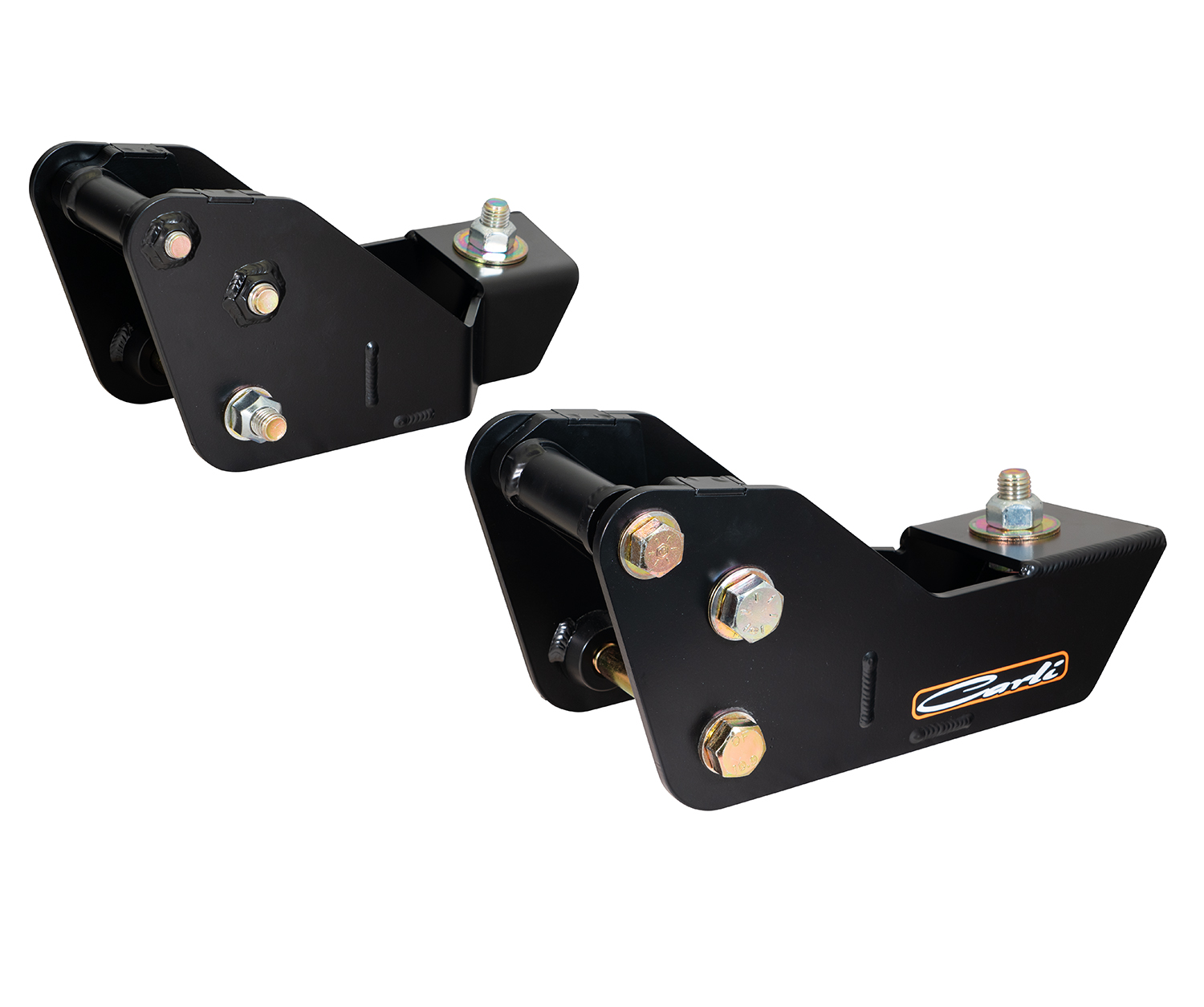

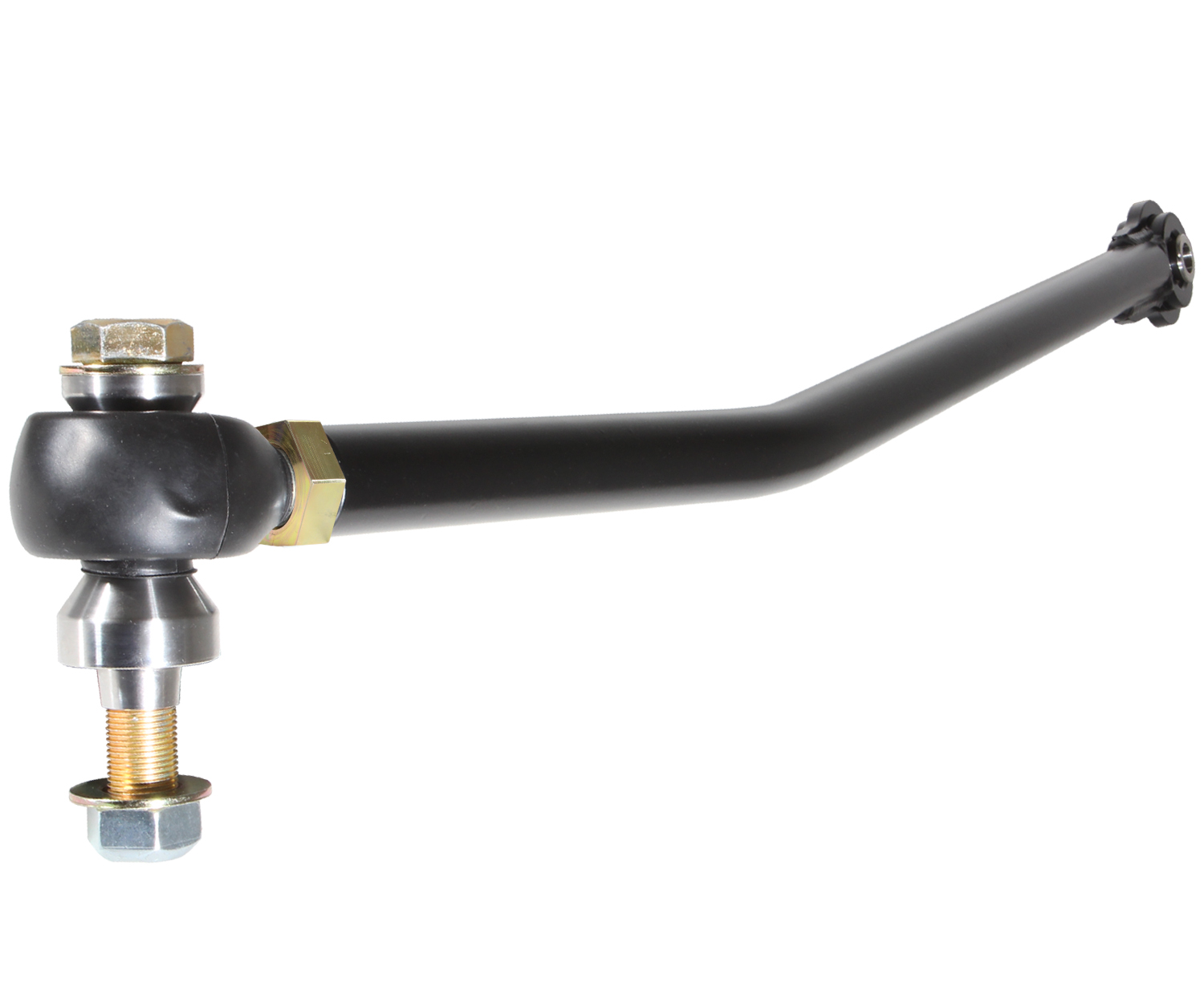

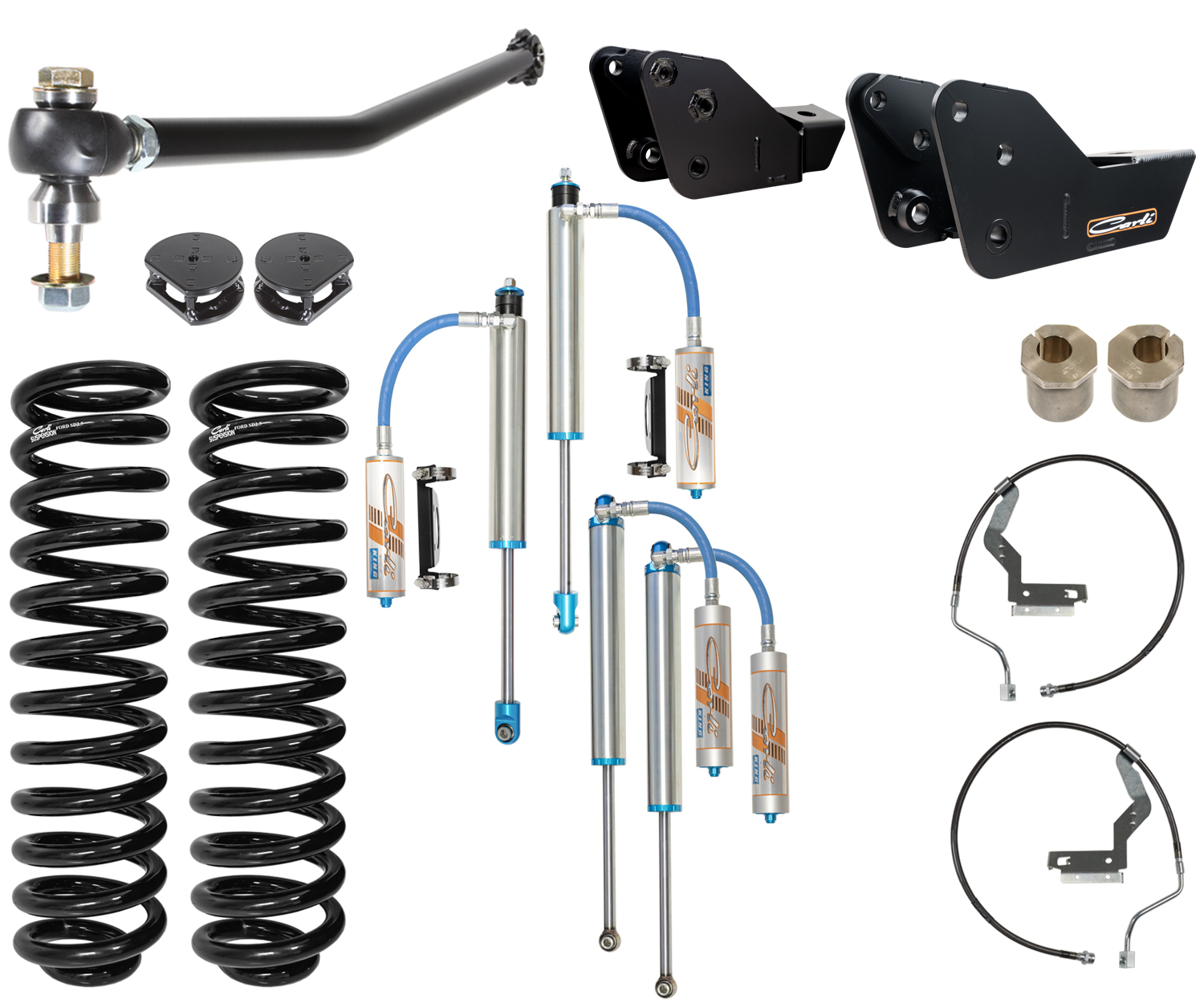

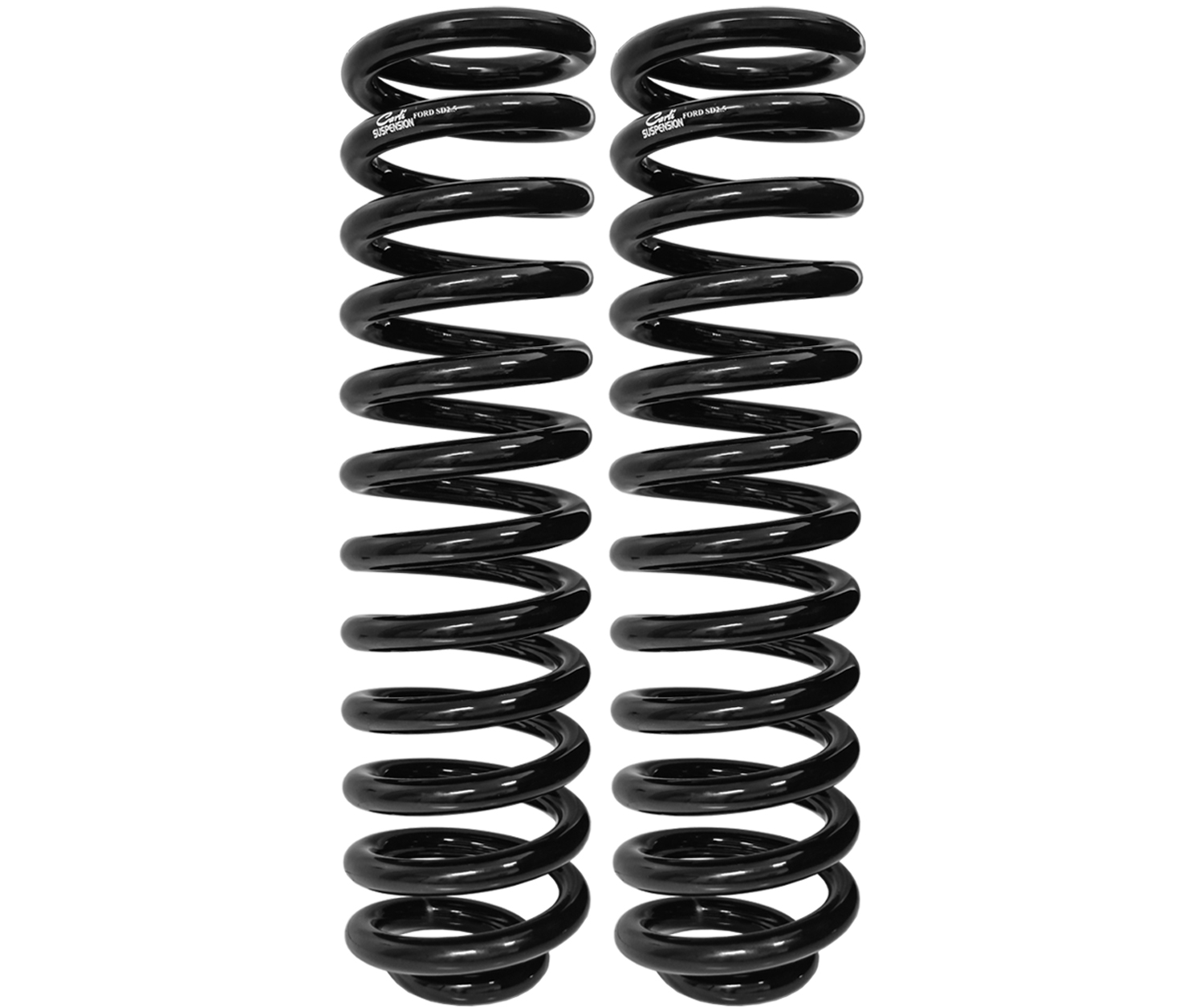

• System includes front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims, radius arm drop brackets, and adjustable track bar.
• Increases wheel travel to 9 inch front and 13 inch rear.
• Fits up to 37 inch tires with ease for a more aggresize appearance and better offroad performance.
• Requires but does Not include sway bar option.

• Coils Quantity Front: 2.0
• Maximum Lift: 3.5 Inch
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Drive: 4WD
• Fuel Type: Diesel
• Warranty: Limited Lifetime Warranty

2023-2026 Ford F-250 Super Duty (Fuel: Diesel and Drive: 4WD)

• 2023-2026 Ford F-350 Super Duty (Fuel: Diesel and Drive: 4WD)
