The Carli 2. 5 inch Pintop Leveling System is designed for the customer who refuses to keep the rubber on the tarmac and has an eye for quality and appreciation for bang-for-their-buck.

Nothing else is needed to run this system.

• Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter (2.5 inch) shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55 percent more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust 3-4-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

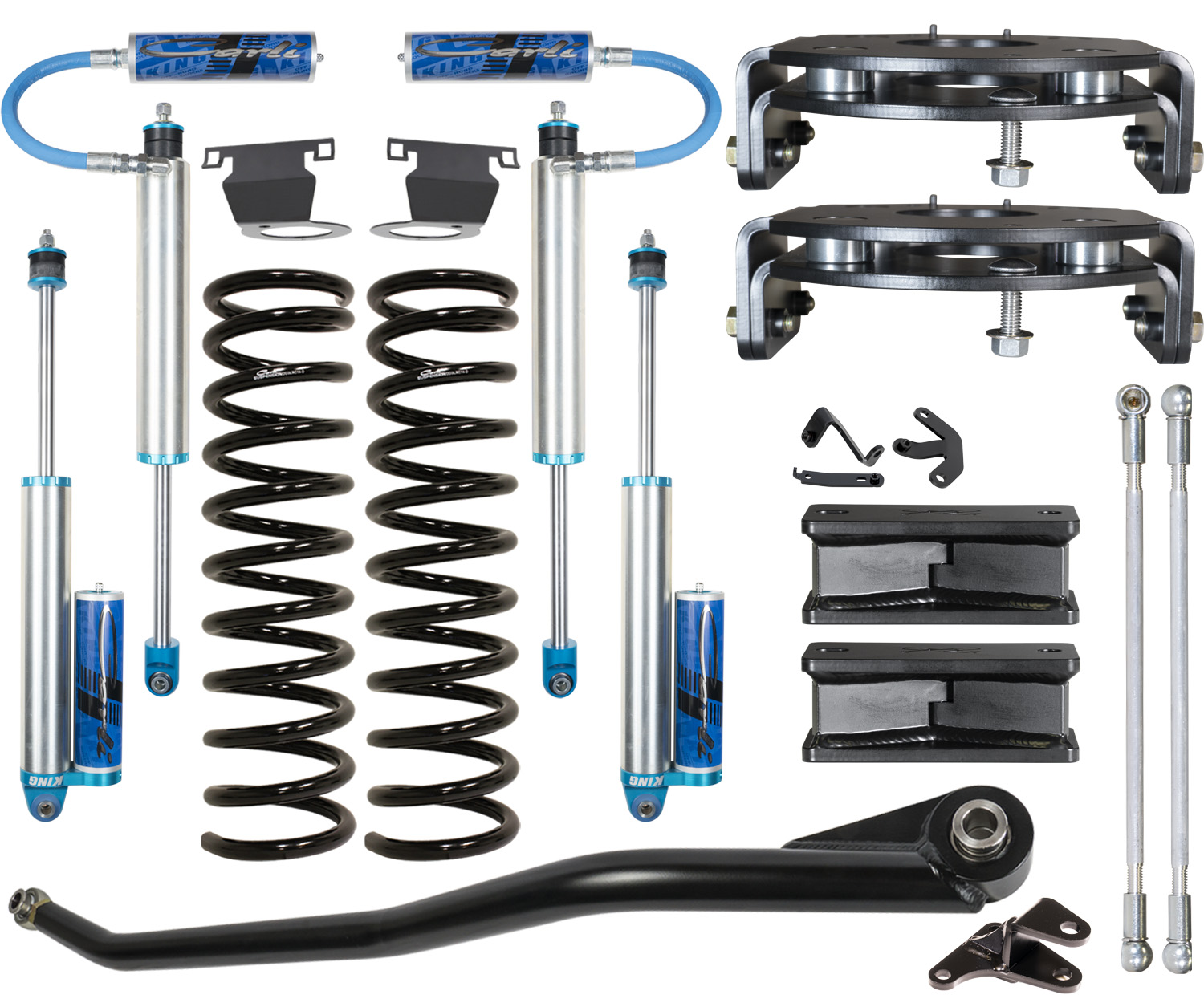

• System includes Multi-rate front coil springs, front and rear shock package, rear air ride components and adjustable track bar.
• The Ultimate Performance Leveling System. For those that love the way their RAM tows from the factory but don't want to be limited to a crawl when leaving the pavement, this is the perfect kit.
• Increases wheel travel to 8.3 inch front and 9 inch rear.

• Drive: 4WD
• Fuel Type: Diesel
• Lift Height: 2.5 inch
• Location: Rear
• Warranty: Limited Lifetime Warranty

2014-2026 RAM 2500 (Fuel: Diesel and Front Spring: Coil and Rear Spring: Air and Drive: 4WD)
